Network Data De-Duplication

Complete visibility of data center networks requires viewing traffic at multiple monitoring points. While this increases overall visibility, duplicate traffic can overload network monitoring tools and effect reporting. Removing duplicate traffic improves monitoring tool efficiency, accuracy, and recording space requirements. This enables monitoring tools to provide greater visibility while lowering overall costs.

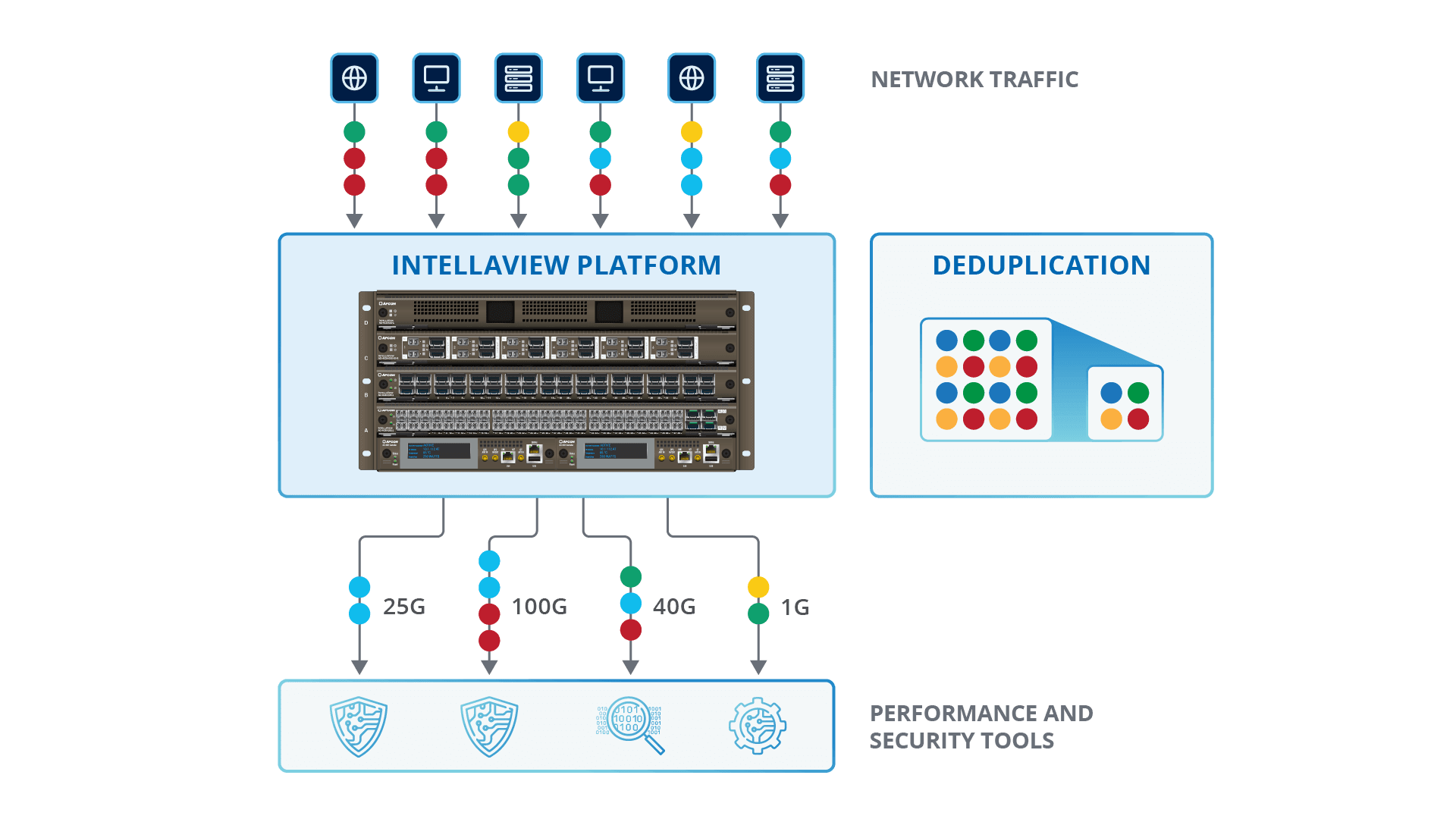

Packet deduplication diagram

Packet Processor Advanced Deduplication

The HyperEngine Packet Processor Blade provides dedicated packet processing for advanced high-speed deduplication of multiple traffic streams up to 200 Gbps, and supports a large match window size up to 500ms. HyperEngine Packet Processor Blade deduplication is fully configurable, with point and click selection to include or ignore packet fields such as the packet time to live (TTL) or header checksum.

Port-Based Deduplication

Port-based deduplication is included in the IntellaFlex Multi-Function blade and IntellaStore Appliance. It is a selectable feature that provides a standard level of packet deduplication prior to sending data to the monitoring tools, and includes configurable duplicate match criteria. Port-based deduplication provides an integrated cost effective solution for standard monitoring deployments.

Deduplication Capable Blades Diagram
  • IntellaFlex Multi Function Blade

    Model Number: ACI-3032-E36-1

    • 36 ports 1G/10G Ethernet
    • Packet Deduplication, Protocol Stripping, Packet Slicing, Time Stamping
    • Timing Services: GPS, IRIG-B, PTP, PPS, NTP
    IntellaFlex Multi Function Blade
  • IntellaStore II Multi Function Data Monitoring with Capture and Analysis Tools

    Model Number: ACI-3033-S14-1

    • 12 ports 1G/10G and 2 ports 40G Ethernet
    • Multi Function blade features (1G/10G ports)
    • Integrated analysis tool server

    Additional IntellaStore II Information

    IntellaStore II Multi Function Data Monitoring with Capture and Analysis Tools
  • HyperEngine Packet Processor Blade

    Model Number: ACI-3033-E02-1

    • Performance up to 200 Gbps
    • 16 internal service ports and 2 40G Ethernet
    • Packet deduplication, NetFlow and GRE endpoint

    Additional HyperEngine Blade information

    HyperEngine Packet Processor Blade
  • WebXR Software

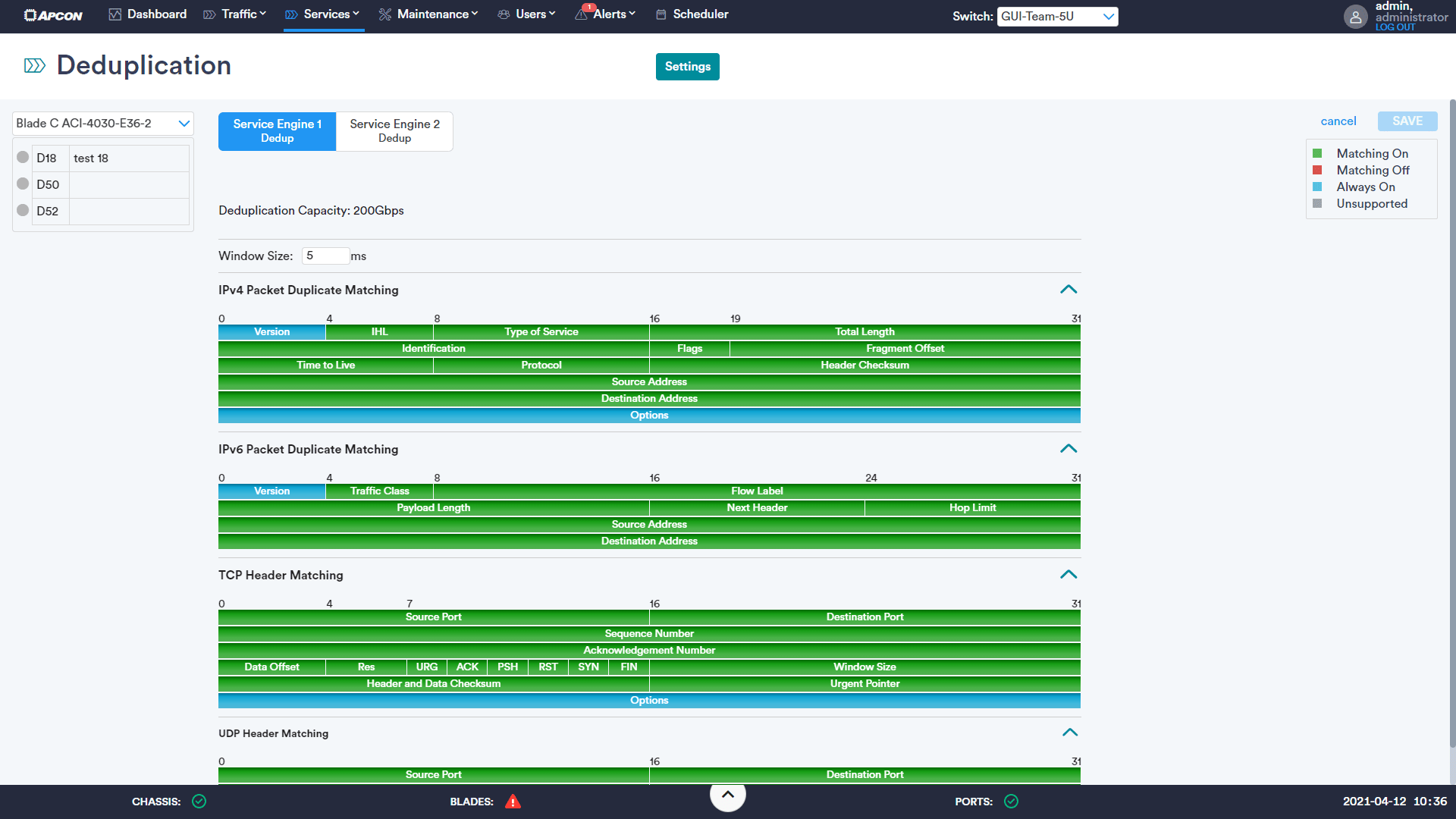

    All APCON blades are managed with easy to use graphical interface software. Deduplication function shown here.

    Learn More

    WebXR deduplication software
